Product Description

Logic Training Board

Biotek Engineers is manufacture,exporters & suppliers of : Logic Training Board

We are a reckoned name, which is engaged in offering Logic Gate Training Board On OR/NOR, AND/NAND, NOT/Buffer to honorable clients. The offered range is known for studying simple logic functions and theorems of boolean algebra and to compare the truth table with experimental results. This range aids in providing new method of training students in the basic theory of digital circuits and making them familiar with basic experiments in digital circuits.

Features :

The board consists of the following built-in parts:

  • ± 5 V D.C. at 500 mA, IC regulated power supply
  • Two, 3-input NAND gates followed by an inverter to give 3-input AND/NAND gates
  • Two, 3-input NOR gates followed by an inverter to give 3-input OR/NOR gates
  • Two, NOT gates followed by another NOT gate to give BUFFER outputs
  • Switches for logic selection
  • Adequate no. of other electronic components
  • Mains ON/OFF switch, fuse and jewel light
  • The unit is operative on 230V ±10 % at 50Hz A.C. mains
  • Adequate no. of patch cords stackable from rear both ends 4 mm spring loaded plug length ½ meter
  • Good quality, reliable terminal/sockets are provided at appropriate places on panel for connections & observation of waveforms
  • Strongly supported by detailed operating instructions, giving details of object, theory, design procedures, report suggestions and book references

Object:

  • OR/NOR function
  • AND/NAND function
  • NOT/BUFFER function
  • Simple function of several variables
  • Distributive law
  • Commutative law
  • Associative law


Other Products in 'Digital Electronics Trainer' category

1 : 8 Line Demultiplexer
Send Inquiry

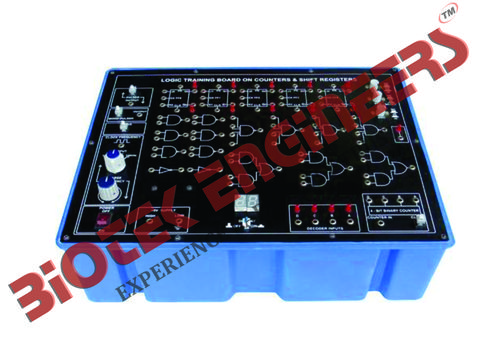

Logic Training Board on Counters & Shift Registers
