Product Description

ULTRASONIC FLAW DETECTOR

This unit has a variable square wave pulser to optimise the performance of transducers. Probe sensitivity is increased by

pulse width variation.

Bench mounted unit.

Bright electro-luminescent display.

Frequency range 5 bands 1MHz to 35 MHz.

Test modes pulse echo and transmit/receive.

Update rate 60Hz., 5 Measurement modes.

Selectable damping.

Continuously variable probe zero.

Test range 1 to 20000mm at steel velocity.

Gain 0 to 110dB., Panel memory 20 stored calibrations., Thickness logging 2000 storage readings., RS232 interface.

Battery operation/Mains operation power pack., Transducer sockets BNC or LEMO., Aluminum Carry case., Operating

temperature-10 to 55 degree C. Transducer, 4.3 MHz crystal single angle medium damped., 2.25 MHz crystal single angle

medium damped., 5 MHz 2 x 8 x 4 crystal twin contact medium damped., 2.25 MHz 2 x 8 x 4 crystal twin contact medium

damped., 1.25 MHz 2 x 8 x 4 crystal twin contact medium damped., 10 MHz 10mm dia. crystal single contact medium

damped., 2,25 MHz 10mm dia. crystal single contact high damped., 5 MHz 10mm dia. crystal single contact high damped.,

Single probe cable 2 metres. , Twin probe cable 2 metres., Printer cable., PC cable., Calibration block welding., Storage and

recall software

WHEEL BALANCER

Send Inquiry

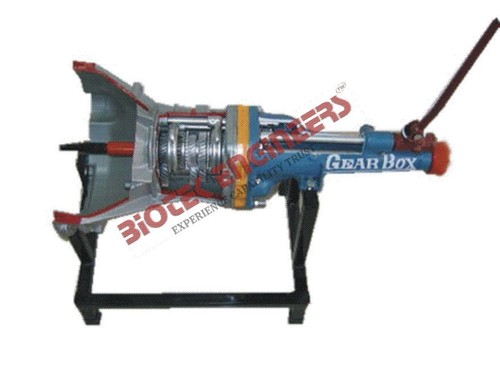

MANUAL GEARBOX

Send Inquiry

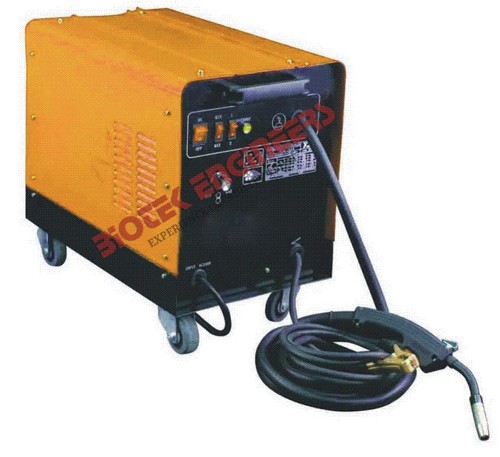

MIG WELDING MACHINE

Send Inquiry

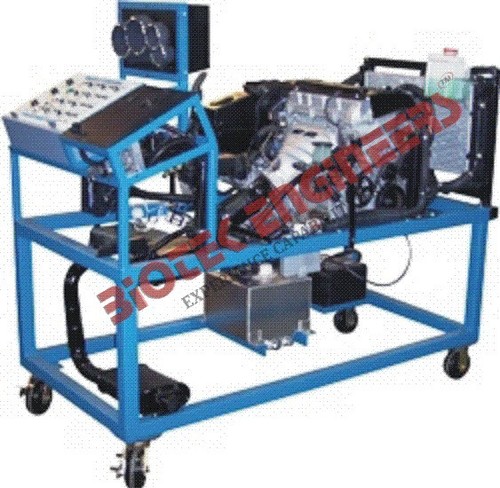

ENGINE PERFORMANCE TROUBLESHOOTING
