Projection Microscope :

Biotek Engineers is manufacturer, exporter & supplier of Projection Microscope

Projection Microscope is very useful for routine observation and complex type measurements of specimen magnified on screen, group observations, discussions and teaching.

Specifications:-
Equipped with a 195 mm diameter
Special material graduated screen
Built-in base illuminator & diaphragm which is directed to the condenser which again is reflected through a mirror to the objective and compensating eyepiece for projection on to the screen again by a reflector
Graduated Mechanical stage is also provided on the large stage for backward and forward movements within 30mm & 40mm scales read by verniers to 0.1mm
Screen-head is rotatable through 360o with cross scales vertically and horizontally within 140mm

A quadruple nose-piece carries has four objectives : 5X, 10X, 20X & 40X giving magnification from 125X to 1000X.
BE-3B : Magnification from 125X to 1500X.
BE-3M : Incorporated with Binocular Head.
BE-3J : Screen of 150 mm diameter.
BE-3S : With built in 6V-20Watt halogen lamp. 6" dia projection head, coarse and fine motion two objective10X and 45X, Mechanical stage for slide manipulation, magnification 40X to 450X complete in box.

Other Products in 'Audio Visual Projections' category

Projections Epidiascope
Send Inquiry
Portable Over Head Projector
Send Inquiry

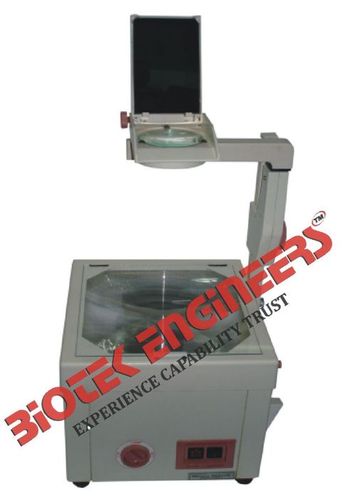

Over Head Projector
