BIOTEK ENGINEERS
MEASURING TOOLS SET

MEASURING TOOLS SET

Get a Price/Quote

Product Details:

Request to Call Back Send Inquiry
X

Product Description

MEASURING TOOLS SET
  •  Measuring equipment to be used for machining shop works.
  •  VERNIER CALIPER:- 6 inch. / 150 mm. size- Accuracy of 1/128 inch. and 0.05 mm.- Used to measure outside/inside and depth dimensions.- Scale type with lock screw.- Made of stainless steel.
  •  VERNIER CALIPER:- 6 inch. / 150 mm. size- Accuracy 0.001 inch. and 0.02 mm.- Used to measure outside/insideand depth dimensions.- Scale type with lock screw.- Made of stainless steel.
  •  DIAL VERNIER CALIPER:- 150 mm. size- Reading at dial with accuracy of 0.01 mm.
  •  DIGITAL VERNIER CALIPER:- 150 mm. size- Reading through LCD with accuracy of 0.01 mm. and 0.0005 inch.- Inch. or mm. measuring can be selectable
  •  DIGITAL VERNIER CALIPER:- 300 mm. size.- Reading through LCD with accuracy 0.01 mm. and 0.0005 inch.- Inch. or mm. measuring can be selectable.
  •  OUTSIDE MICROMETER:- 0-25 mm, 25-50 mm, 50-75 mm. and 75-100 mm. size with accuracy 0.01 mm.- Measuring faces are carbide tips- Ratchet stop type or friction drive type.- Lockable at any position.
  •  INSIDE MICROMETER:- 25-50 mm. size with accuracy of 0.01 mm.- High-grade steel measuring face- Ratchet stop type or friction drive type.- Lockable at any position
  •  DEPTH MICROMETER:- 0-150 mm. size with accuracy of 0.01 mm.- Measuring spindle is harden and ground.- Base size is min. 100 mm.- Ratchet stop type or friction drive type.
  •  UNIVERSAL BEVEL PROTECTOR:- A complete set of Universal Bevel Protector.- Protector head with magnifier lens, 12" blade.- Graduation 1° Dial, 5 min. Vernier.- Hardened stainless steel.4600-0
  • SCREW PITCH GAUGE:- Set of metric screw pitch gauge size 0.4-0.7 mm. min. 21 pcs./set- Unified screw pitch gauge size 4-12 TPI min. 42 pcs./set and can be lockable.
  •  RADIUS GAUGE- Size 0.5-13 mm. (0.5 mm. stepped)- Furnished with 15 pcs./set.
  •  COMBINATION SQUARE:- Blades size 300 mm.- Square head 45° and 90°- Complete with center head and protractor head- Scale graduation 0.5 mm, 1 mm.
  •  MORSE TAPER GAUGE:- Size of MT1, MT2, MT3 (Outside and Inside)
  •  GAUGE BLOCK- Made of steel alloy- Metric system, 32 pcs./set, quality grade zero
  •  SINE BAR:- Size 150 mm.
  •  TOOL CABINETS- Steel cabinet size (approx) WxDxH = 90x45x75 cm. with 2 sliding glass door standard.

Other Products in 'Mechanical Lab Equipments' category

CAR CHARGING TRAINER
Send Inquiry

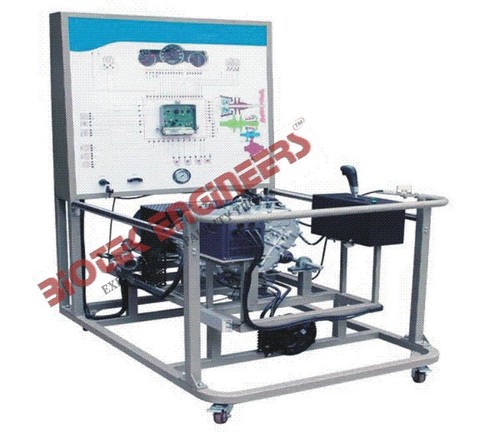

CONTINUOUS VARIABLE TRANSMISSION
