Ion Chromatography

Ion Chromatography

Get a Price/Quote

Product Details:

Request to Call Back Send Inquiry
X

Product Description

ION CHROMATOGRAPHY (ANION AND CATION EXCHANGE SYSTEM)
  • Ion Chromatography Module
  • Wetted Materials: PEEK
  • Dimensions: (W x H x D) 396 x 165 x 478 mm
  • Power Supply: 100 - 250 ~V (47 - 63 Hz)
  • Column Oven Temperature Range: +30°C to +100°C1
  • Temperature Accuracy: 0.1 °C
  • Conductivity Detector Measuring Range: 20 nS/cm up to 20,000 μS/cm
  • Flowcell Volume: 0.76 μl
  • Auto-Suppressor Pump System: Membrane Pump
  • Safety Systems: - Pressure Sensor & Pressure
  • Valve Sample Injector System
  • Wetted Materials: PEEK
  • Sample Capacity: 120 (1.5 ml), 192 (microtiter plates)
  • Injection Volume: Programmable 0.1 - 999.9 μl
  • Sample Heating/Cooling: optional: +4 to +60 °C
  • Injection Precision: 0.5 %
  • Variable Volume Injection (10 μl; typically ~0.25 %)
  • Linearity: Correlation Factor > 0.999 (10 μl injection volume, 500 μl Syringe)
  • Carry Over: 0.05 % with wash program
  • Dimensions: (W x H x D) 396 x 275 x 478 mm
  • Quaternary Gradient Pump System with integrated 4-Channel
  • Vacuum Degasser
  • Wetted Materials: PEEK
  • Flow Rate: Programmable
  • Analytical: 0.001 - 10.000 ml/min
  • Flow Accuracy: ± 1.0 % 1.000 ml / min
  • Flow Precision: ± 0.1 % RSD 1.000 ml/min
  • Pressure Range: 0 – 40 MPa (0 – 6000 PSI)
  • Pressure: typical 0.1 MPa or 1.0 %
  • Compressibility: user-adjustable for different solvents
  • Vacuum Degassing: 20% dissolved gases remaining in water @ 1.000 ml/min
  • Gradient Range: 0.0 – 100.0 %, 4 channels
  • Gradient Accuracy: 0.50 %
  • Gradient Mixing: Active Mixer
  • Volume: adjustable: 100 – 500 μl
  • Dimensions: (W x H x D) 396 x 165 x 478 mm
  • Reagent Organizer with Gas Regulator,
  • 4x 1000 ml Bottles
  • Separation Columns: Anion and cation
  • Separation Columns (2.6 x 150 mm)
  • Include: Computer and Printer Onsite.
  • Includes Installation, user training

Other Products in 'General Laboratory Products' category

Oven
Send Inquiry
Multi-Purpose Centrifuges
Send Inquiry
Cylinder Brush
Send Inquiry

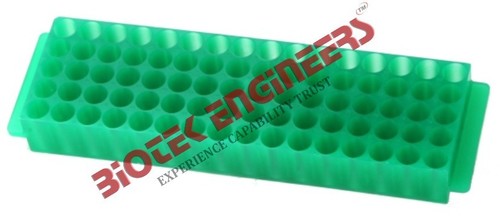

Test Tube Rake
