Grain Size Analysis Apparatus

Product Description

Grain Size Analysis App., Pipette method,

Biotek Engineers is manufacture, exporters & suppliers of:Grain Size Analysis App.

Grain Size Analysis App., Pipette method, as per IS:2720 (part IV)

This is for the determination of their sub sieve particle distribution in a soil sample by mechanical analysis. An analysis of this kind expresses quantitively the proportions by weight of the various sizes of particles present in the soil. It is recommended as a standard procedure to use dispersion agent to avoid floculation..

Specifications:

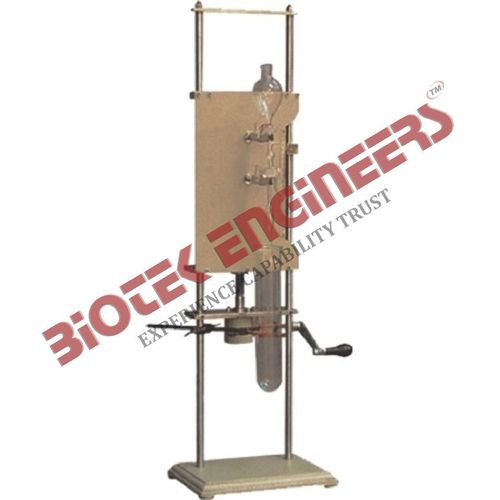

The apparatus consists of a sliding panel which moves up and down by means of a screw allowing Anderson pipette fixed to it to be raised or lowered vertically. A sedimentation tube is held by a laboratory clamp provided on the stand below the pipette. The depth of immersion is measured by a scale graduate in mm at the side of the sliding panel. Supplied complete with Anderson pipette 10 ml. at the side capacity made from glass, and a sedimentation tube also of glass of 500 ml capacity and 50 Nos Test forms.

Accessories and Spares:

1) Sedimentation pipette (Anderson pipette) 25 ml.

2) Sedimentation tube 1000 ml.

3) Sedimentation pipette 10 ml.

4) Sedimentation tube 500 ml.

5) Test forms pad of 50.
