DIGITAL OSCILOSCOPE

Request to Call Back Send Inquiry

Product Description

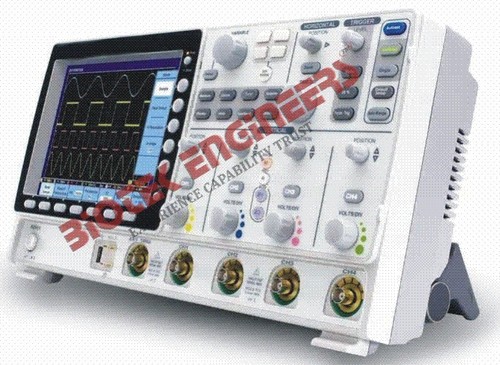

DIGITAL OSCILOSCOPE

For engine diagnostics and testing.
High tech test screens.
Scanner interface ability w/ printers and exhaust gas analyzers.
Simplified keyboard design.
Expanded memory can save up to 32 screens.
Can be operated w/ electricity or w/ battery for portability.
Primary diagnostic test screen: primary waveform,primary parade waveform, dwell bar graph, duty cycle graph,burn time bar graph /dwellbar graph, duty cycle/voltage bar graph.
Secondary diagnostic test screen: secondary waveform,secondary parade waveform, kV histograph, kV bar Diagnostic test screen: voltage waveform, lab scope wave form, fuel injector waveform, alternator waveform.
Cylinder test screen: vacuum waveform, balance wave form, cylinder time balance bar graph, cylinder shorting power even/odd bar graph, cranking amps bar graph.
AC operation: 120 VAC, .55 A, 70 W; 240 VAC, .27 A,70 W.
DC operation: 9-16 VAC, 3.5 A, negative ground.
Operating temp range: 35-100 deg F.
Storage temp range: -20-130 deg F15] Relative humidity range: 0-85 percent (non-condensing).
Engine testing capability: 1-16 cylinders, 2- or4-stroke cycles.

FUNCTION GENERATOR UNIT TWO

Send Inquiry

Mock Layout of Car Wiring

Send Inquiry

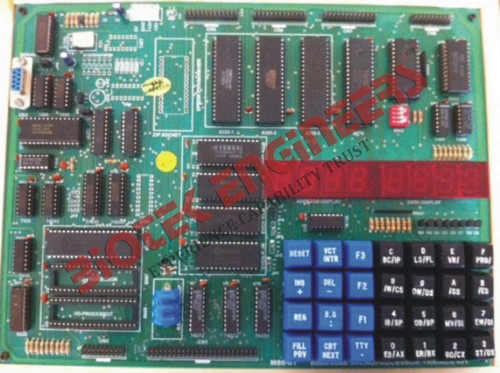

32-BIT MICROPROCESSOR SYSTEM
