Compression Testing Machine

Product Description

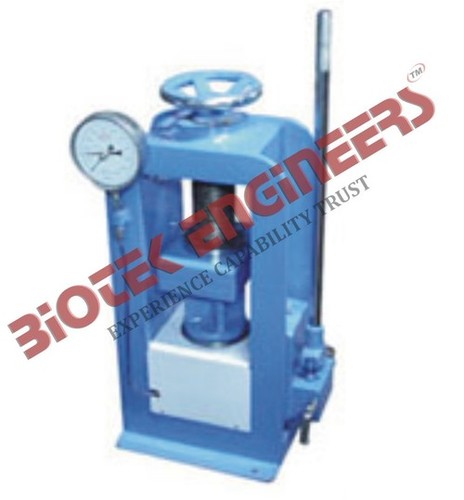

Compression Testing Machine :In Channel Type

Biotek Engineers is manufactures,exporter & suppliers Compression Testing Machine :In Channel Type.

Compression Testing Machine :In Channel Type

In these load frames “C” channels are used, they are welded at the top as well as bottom and with stand high loads. A hydraulic jack is fitted at centre of the base of the load frame, over which can be fitted lower platen and spacer block with the help of centering pin. A lead screw passes through the top of the frame. To the lower end of this lead screw is fixed the upper platen with spherical seat for self alignment. The platens are accurately machined, hardened and polished. The lower platen grooves to correctly place the specimen.

Note : The platens are normally rectangular on shape, but no special request square platens or circular platens can be supplied at an extra cost. Ranges : 50 kN to 3000 kN
