Atr- Ftir Interferometer

Atr- Ftir Interferometer

Get a Price/Quote

Product Details:

Request to Call Back Send Inquiry
X

Product Description

ATR- FTIR INTERFEROMETER
  • 25 mm,
  • Permanently aligned,
  • Michelson, 45°, mechanical flexture,
  • Enclosure Sealed and desiccated; Spectrometer interface:
  • USB-2 Size: 16 x 31 x 13 cm (W x D x H),
  • Weight: 3.8 kg
  • Sample interface: DialPath (30 to 250 μm)
  • TumblIR, Diamond ATR, Diffuse Reflectance
  • Transmission,
  • Germanium ATR,
  • 5 Bounce ZnSe ATR,
  • 10 Degree SRA,
  • 45 Degree SRA Software Agilent MicroLab PC software,
  • Automated IQ/OQ Resolutions Pro for advanced data analysis.
  • Power: 110 – 240 V AC, 60/50 Hz
  • Spectral range: KBr 7000–350 cm-1 ZnSe 5100–600 cm-1
  • Spectral resolution: 2 cm-1
  • Wavenumber accuracy: 0.05 cm-1
  • Measured with a NIST 1921 traceable standard
  • Wavenumber reproducibility: 0.005 cm-1
  • Measured with a NIST 1921 traceable standard interferometer,
  • Location dependent Hardware support
  • Configration Cary 630 FTIR Instrument with Laptop PC.
  • Includes KBr engine,
Accessories:
  • Software, power cord and USB cable. Cary 630 FTIR with KBr windows and internal optics Transmission Sample Interface The Cary 630 Transmission accessory provides the classic infrared sample interface enabling the measurement of solids, liquids or gases. Solids are analyzed in a pressed KBr pellet, a nujol mull, or evaporation onto salt plates; liquids are measured with a traditional sealed or demountable cell and gases can be measured with the Cary 630 FTIR gas cell.
  • The purgeable transmission module is also useful for measuring thin polymer films.
  • Comes with a standard card holder. Not suitable for large 3rd party accessories such as ATRs.
  • Diffuse Reflectance Sample Interface The Cary 630 Diffuse Reflectance Accessory (DRA) provides quantitative and qualitative information on powdered or solid samples.
  • This technique delivers more sensitive quantitative analysis than ATR, while still being easy to use.
  • The DRA is optimized for use with the Cary 630 FTIR optical system, providing the highest sensitivity available for fast, accurate measurements.
  • While ATR is often the easiest sampling technique, the sensitivity can be difficult to adjust.
  • Diffuse reflectance allows you to vary the ratio of KBr to the sample to measure a much larger range of concentrations Gas Cell (50MM-KBr) Sample Interface An Agilent 50 mm pathlength gas cell is used to make gas phase measurements.
  • The gas cell has an internal aperture to insure that the spectra collected are optically 2 cm-1 The replaceable windows are KBr as provided.
  • The stainless steel cell has 1/8” barbed fittings for the inlet and outlet of sample gases. (Requires Transmission Sample Interface #300 purchase separately) Diamond ATR Sample Interface The Cary 630 Diamond ATR accessory is a single bounce ATR specifically designed to optimize the energy throughput, ensuring you achieve the highest quality spectra.
  • The ATR technique attenuates a significant amount of the instrument IR light thereby reducing the sensitivity compared to direct transmission measurements.
  • The unique design of the Cary 630 FTIR and the Diamond ATR increases energy throughput around 30% compared to other routine FTIR systems, enabling faster data collection lower noise and superior quality.
  • Also included with this accessory is a swivel press design that allows the user to clean and place samples easily without hindrance of the press. Polystyrene Disks for Diffuse Reflectance Accy Polystyrene Film for ATR/Trans

Other Products in 'General Laboratory Products' category

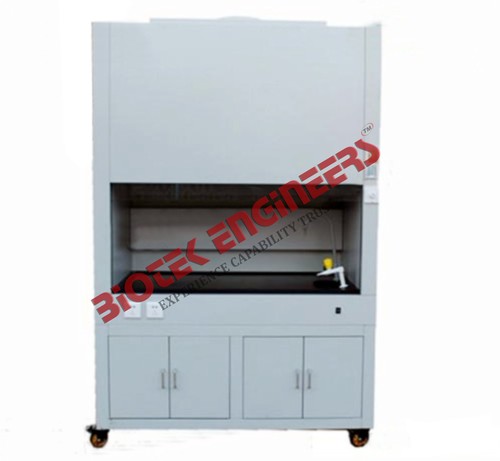

Fume Hood
Send Inquiry

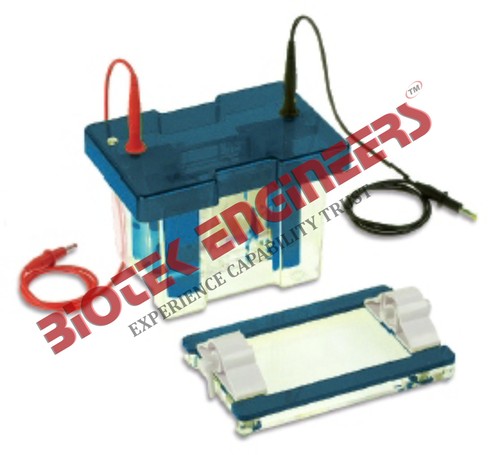

Multiple Mini-Gel Casting
Send Inquiry

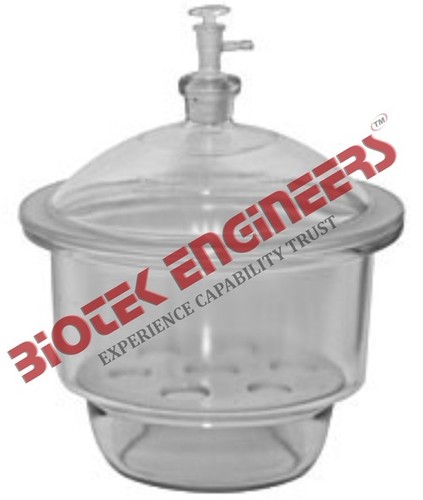

Desiccators
Send Inquiry

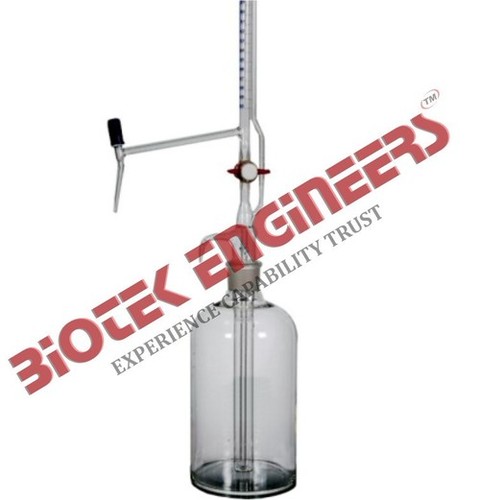

Automatic Burette
